GI Motorised Rolling Shutters for Flipkart — Bilaspur Warehouse Installation
Bilaspur, Chhattisgarh
2 shutters
GI motorised shutter

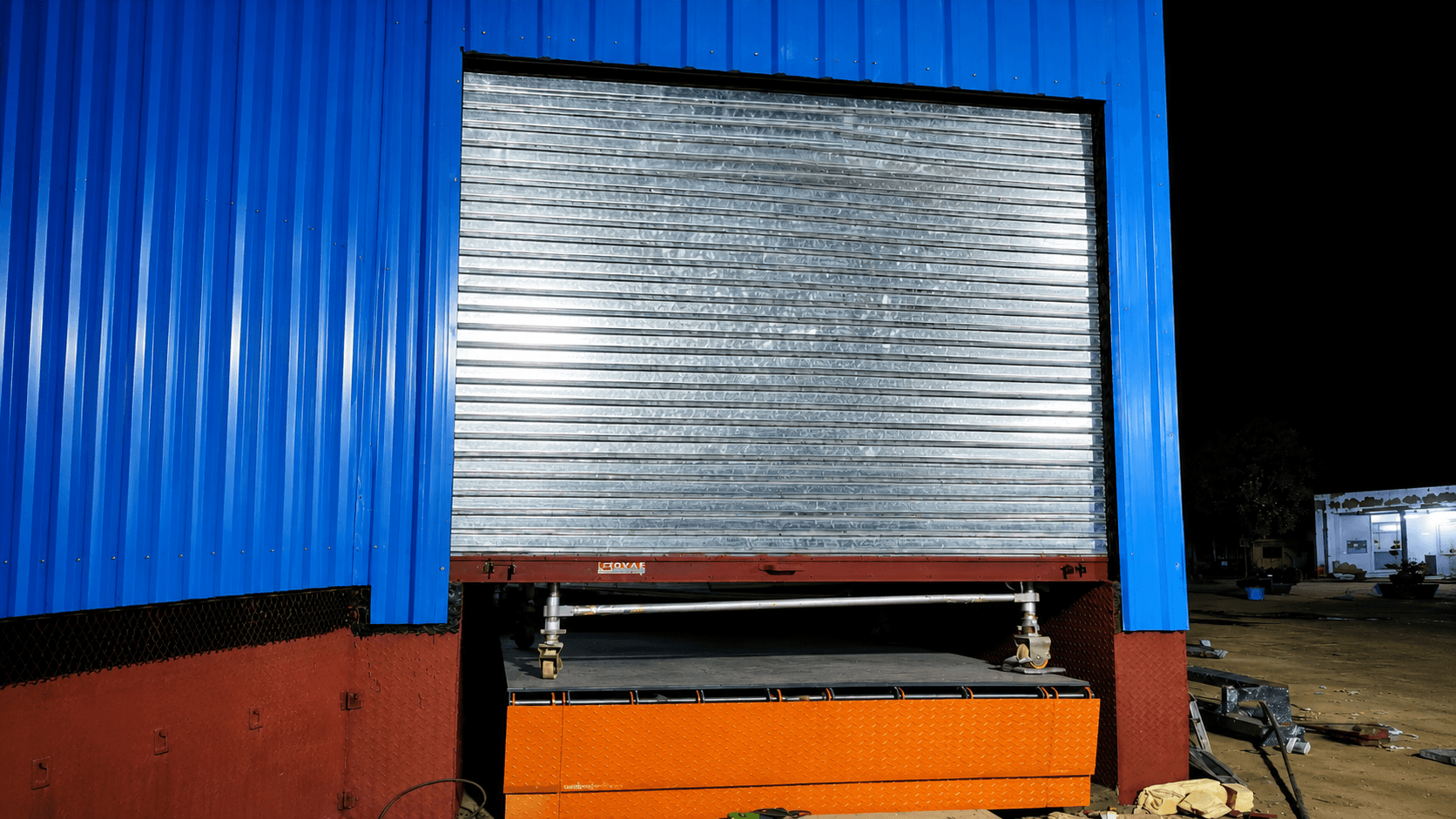

Flipkart Bilaspur view 2
01 / 03

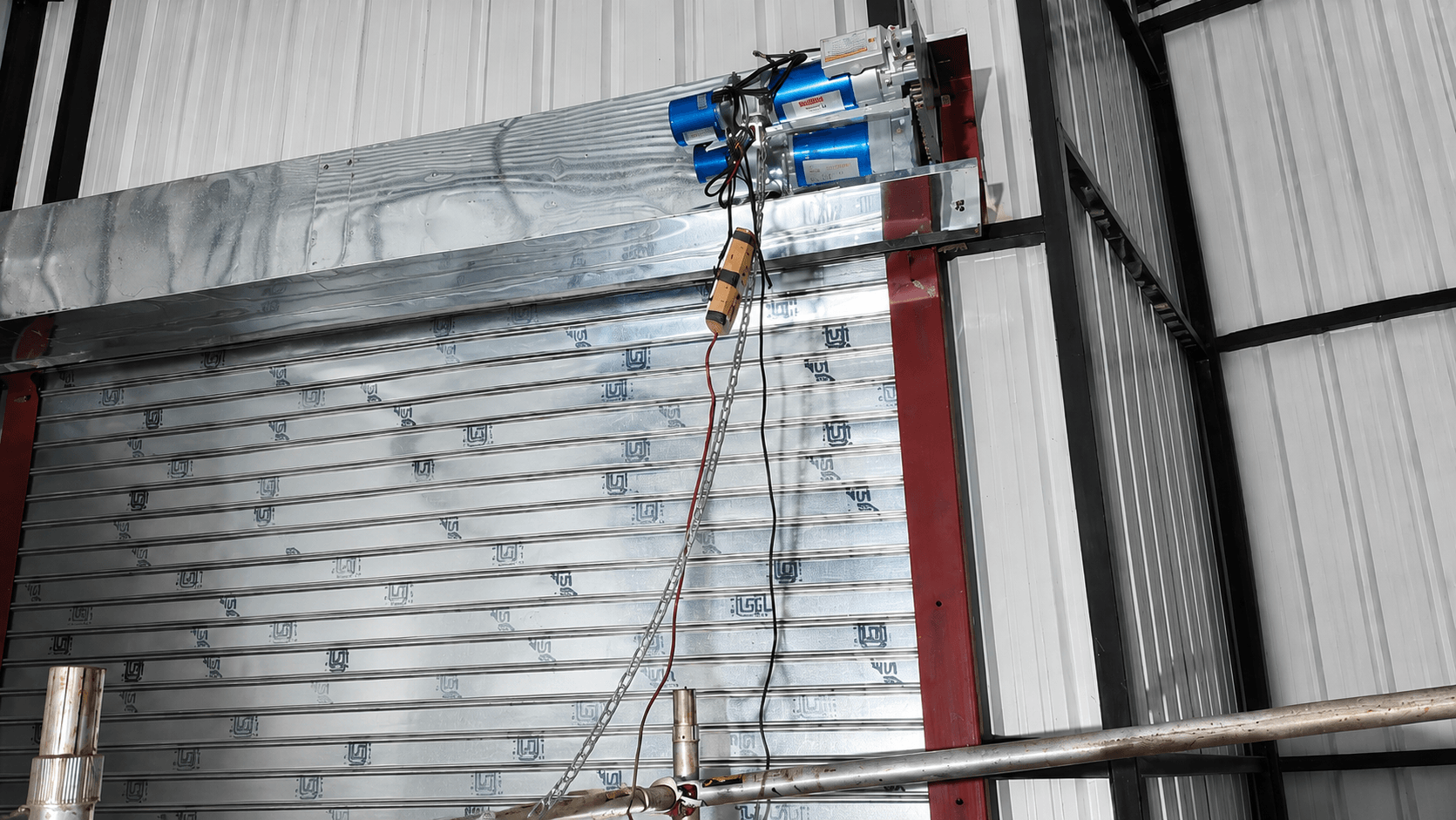

Flipkart Bilaspur view 3
02 / 03
Flipkart Bilaspur Shutter Operation Video
03 / 03
2
Shutters Installed
4
Days to Complete
0.8mm
GI Slat Profile
Case Study Overview
Heavy-Duty Loading Bays, Moisture Protection, High-Frequency Use
The Challenge
The high-frequency distribution hub needed heavy-duty loading bay shutters capable of resisting high winds and heavy monsoon moisture without rusting, while maintaining rapid cycle speeds to control interior temperatures.
Our Solution
We fabricated 2 motorized Z275 galvanized steel shutters with custom low-friction nylon tracks and 500kg side motors. Integrated optical safety edge sensors provide auto-reverse protection to prevent vehicle accidents.
2 motorized GI rolling shutters (13ft x 12ft layout) for dispatch bays
0.8mm Z275 hot-dip galvanized steel slats for heavy corrosion defense
75mm heavy-gauge side tracks with anti-wear nylon guide runners
500kg external side motors with integrated safety sensors
Optical safety edge integration for auto-reverse block detection
“
""The safety sensors have already prevented multiple warehouse forklift dents. Excellent build quality and smooth motorized controls.""
Fulfillment Hub Engineer, Flipkart Bilaspur
Technical Specifications
System Overview
ProductMotorised GI Shutter (Warehouse Spec)
Curtain Material0.8mm Galvanised Steel
FinishMill Finish Galvanised
Motor500kg External Motor
ControlsCentral Station & Key Switch
Safety FeaturesAuto-Reverse Safety Edge
Operation Speed12 Seconds Opening Time
Completion DateDecember 2025
Results
Monsoon-Proof Logistics Access
The installation was completed in 4 days, with zero impact on the warehouse's daily dispatch schedules. Post-installation tests verified perfect safety-edge triggers and smooth, quiet rolling. The warehouse managers noted that the bottom seals have kept the loading docks dry and dust-free.
Completed installation in 4 days, keeping bay lanes operational
Integrated safety edge fully calibrated and certified
Weatherproofing seals successfully blocked heavy monsoon wind and rain
Low-friction guides reduced motor starting current by 15%
