The Vegas Mall department store featured a massive 24-foot curved entrance with strict low-headroom structural fire barrier limits that ruled out standard vertical rolling box bulkheads.
Our Solution
We engineered a custom top-hung horizontal sliding polycarbonate folding shutter (24ft x 10ft) that slides manually into hidden side stack pockets, leaving the entrance flat, safe, and 92% transparent.

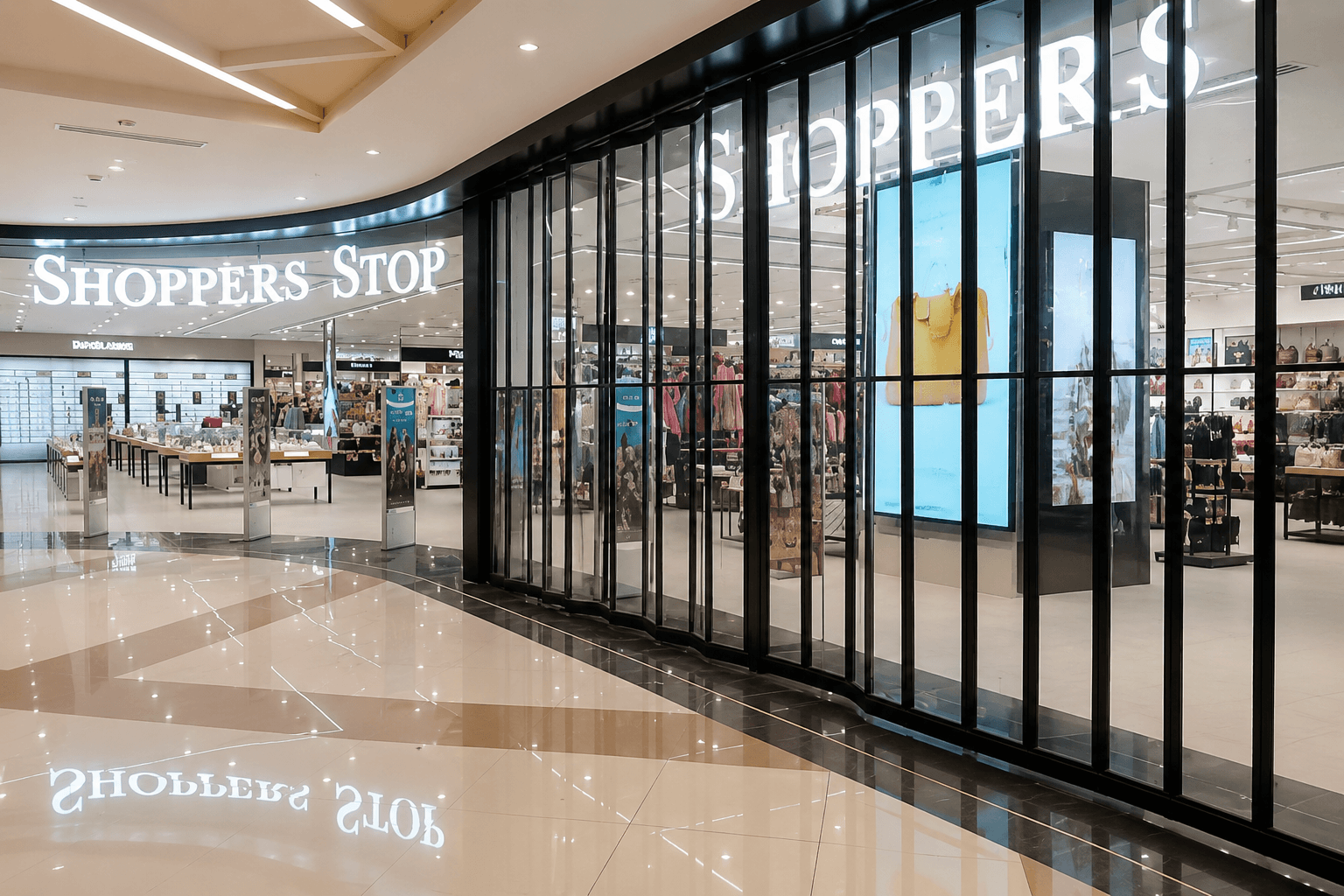

Custom horizontal sliding polycarbonate shutter (24ft x 10ft layout) for main entrance
Top-hung heavy-duty aluminum guide track system without any floor grooves
92% transparent polycarbonate panels linked with silver-anodized aluminum struts
Side folding stack pocket design concealed inside drywall columns
Multi-point cylinder locking system securing the vertical sliding locks
“
""Goyal's sliding shutter is a masterclass in retail engineering. It glides open smoothly, and our storefront displays look stunning 24/7.""
Projects Lead, Shoppers Stop Retail India
Technical Specifications
System Overview
ProductHorizontal Sliding Polycarbonate Shutter
Slats Material3.0mm Transparent Polycarbonate
Link RibsAnodized Aluminum Columns
Track SystemTop-Hung Heavy Aluminum Track
Floor GuideNone (Flat Walkway with Drop-Bolts)
LockingKey Cylinder Locking + Floor Sockets
Transparency92% Visual Light Transmission
Completion DateApril 2026
Results
Aesthetic Storefront with Zero Trip Hazards
The custom sliding system was installed and calibrated in 4 days. Since it does not require a floor track, the mall walkway remains completely flat. Store operators can easily slide the massive 24ft shutter into the side pocket manually, with the top-hung roller design reducing starting friction to less than 4kg of pull force.
Horizontal folding design completely eliminated the need for heavy bulkheads
Top-hung structure leaves mall entrance completely flat and safe
